| Stock # – LEU115394 |
- Matte

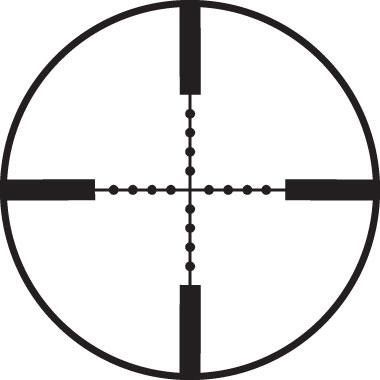

- Mil-Dot
- 1″
- Adjustable Objective
- Mark AR MOD 1 P5 Dial
|
| Specifications |
| Actual Magnification: |
6.50 – 17.10 |
| Linear Field of View @ 100 yds (ft): |
15.20 – 6.70 |
| Linear Field of View @ 100 m (m): |
4.90 – 2.10 |
| Eye Relief (in): |
4.90 – 3.70 |
| Eye Relief (mm): |
124.00 – 95.00 |
| Weight (oz): |
15.30 |
| Weight (g): |
433.00 |
| Objective Clear Aperture (in): |
1.50 |
| Objective Clear Aperture (mm): |
39.00 |
| Elevation Adjustable Range: |
67.00 moa |
| Windage Adjustable Range: |
67.00 moa |
| Diagram Specifications |
| A. Length (in): |
13.50 |
| B. Tube Length (in): |
5.60 |
| C. Illustration (in): |
2.40 |
| D. Illustration (in): |
2.00 |
| E. Eyepiece Length (in): |
3.20 |
| F. Objective Length (in): |
4.30 |
| G. Objective Diameter (in): |
2.00 |
| H. Eyepiece Diameter (in): |
1.60 |
| K. Tube Diameter (in): |
1.0 |
|
|
|
|
|
